Encoder disc manufacturer · Since 2007
Precision encoder discs & code wheels, made in our own photolithography factory
ENC7 supplies glass, reflective metal and PC encoder discs — incremental, absolute and sine/cosine — to encoder, servo motor and robot makers. Built to your drawing, inspected disc by disc.
- 2007Founded
- ~30,000Discs per day
- 100%AOI inspection
- ISO 9001 · ISO 14001Quality & environmental management
- MOQ 100 pcsLead time 5–7 days
Products
Encoder disc product range

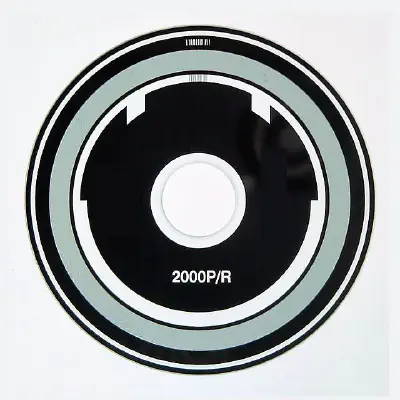

Transmissive · Chrome on glass · ManufacturerGlass Encoder Disc
Chrome-on-glass, photolithographic graduations. The first choice for high resolution and thermal stability.
Specifications →

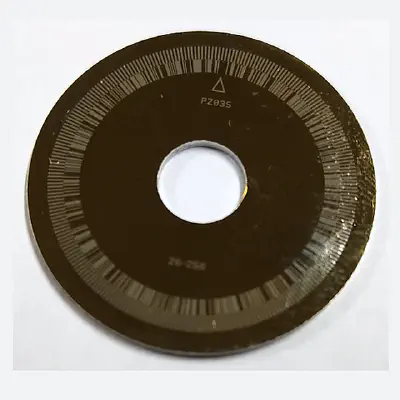

Reflective · Stainless steel code wheel · ManufacturerMetal / Stainless Steel Encoder Disc
Stainless steel code wheels with high/low-reflectance patterns. Thin, robust encoders for robot joints and slim servo motors.
Specifications →

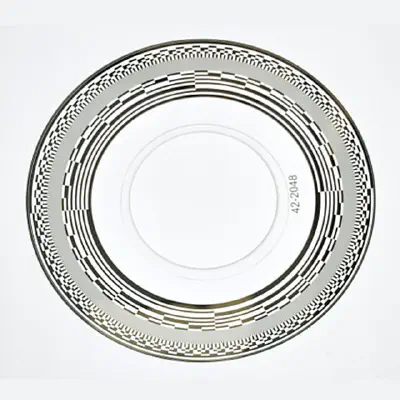

Transmissive · PolycarbonatePC Encoder Disc
Polycarbonate, transmissive. Lightweight, tough and the lowest cost for high-volume encoders.
Specifications →

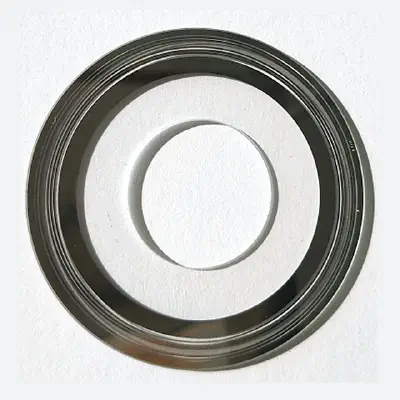

Built to drawingCustom Encoder Disc
Your drawing, your tracks, your substrate. Incremental, absolute and sin/cos patterns made to order.
Specifications →
Radial grating · Moiré pairs · Photolithography to drawingRadial Grating / Moiré Disc
Radial line patterns on glass or film by photolithography — single gratings or matched moiré pairs, built to your GDSII / DXF.
Specifications →
Transmissive · Cr on glass · PhotolithographyChrome-on-Glass Encoder Disc
Chrome graduations on optical glass by photolithography — sharp edges and high contrast for high line counts.
Specifications →
A/B quadrature · Z index · sin/cos · ManufacturerIncremental Encoder Disc
Equally spaced lines plus an index (Z) track for A/B quadrature or sin/cos output.
Specifications →
Multi-track Gray code · pseudo-random · ManufacturerAbsolute Encoder Disc
A unique code for every angular position — position known at power-up, no homing.
Specifications →
Codewheel · glass · stainless steel · PC · ManufacturerCode Wheel
Optical codewheels in glass, stainless steel or PC, made to your drawing.
Specifications →
Code disk · grating discCode Disc
Optical code discs for rotary encoders, made to drawing in our own factory.
Specifications →What is an encoder disc?
The part that decides your encoder's resolution and accuracy
An encoder disc — also called an encoder disk, optical encoder disc, code disc, code wheel or codewheel — is the rotating element of an optical rotary encoder. It carries a precise radial pattern of transparent and opaque (or high- and low-reflectance) areas. A readhead's light source and photodetector read that pattern and convert rotation into position and speed signals.
Line count sets the base resolution; line edge quality, pitch uniformity, optical contrast and pattern-to-bore concentricity set how accurately the encoder can measure angle. That is why we make every disc by photolithography and check every disc with machine vision — whether you specify a glass, reflective metal or PC encoder disc / encoder disk.
Start with the product pages for a glass encoder disc, reflective metal encoder disc or PC encoder disc, or read the encoder disc FAQ and encoder disc vs code wheel guide.
| Criterion | Glass (chrome on glass) | Reflective metal | PC (polycarbonate) |
|---|---|---|---|
| Typical optical path | Transmissive | Reflective (source and detector on the same side) | Transmissive |
| High line counts / absolute multi-track | Easiest | Possible, limited by etching and coating | Moderate resolution |
| Thermal expansion (approx.) | Low — about 3.3 (borosilicate) to 9 (soda-lime) ×10⁻⁶/K | Higher — stainless steel about 16–17 ×10⁻⁶/K | Highest — about 65–70 ×10⁻⁶/K |
| Shock and vibration | Sensitive to drops and impact | Very good — does not shatter | Good — tough, not brittle |
| Encoder height | Needs space on both sides | Can be very thin | Needs space on both sides |
| Relative cost | Higher | Lower than glass | Lowest |
| Best for | CNC, rotary tables, metrology, high-resolution servo | Robot joints, slim servo motors, hollow-shaft encoders | High-volume, cost- and weight-sensitive encoders |
Manufacturing
Full in-house process, from substrate to inspection
- 01
Lapping & polishing
Substrate flatness and surface quality.
- 02
Optical coating
Cr, reflective or anti-reflective stacks to suit your optical path.
- 03
Photolithography
Resist coating, exposure, development and etching for sharp, uniform lines.
- 04
Laser cutting
Laser OD cutting and bore machining with controlled edge chipping.
- 05
100% AOI
Machine vision checks graduations and surface defects on every disc.
Applications
Where our code wheels work
Servo & stepper motors
Glass for high-resolution servo feedback, reflective metal for slim motors, PC for cost-driven steppers.
Robot joints
Thin reflective metal and absolute discs for collaborative and industrial robot joints.
CNC machine tools
Chrome-on-glass discs for spindle, rotary table and position feedback on CNC machines.
Metrology & surveying
High-accuracy glass discs for optical instruments, measuring equipment and surveying.
Automation & motion control
Position and speed feedback for production lines, conveyors and motion systems.
Office & consumer equipment
Low-cost PC code wheels for printers, office machines and consumer devices.
Why ENC7
A focused disc maker, not a trading company
- Specialists since 2007. Encoder discs are our core business, operated by Langfang Jingzheng Optoelectronic Technology Co., Ltd..
- Three substrates under one roof. Glass, stainless steel and polycarbonate — pick the right material, not the only one a supplier has.
- Volume capacity. About 30,000 discs per day across all product lines.
- Own IP in reflective discs. Patent CN217210914U covers our layered reflective/absorbing film structure.
- Engineers who read drawings. Manufacturability review before quotation; samples before volume.
